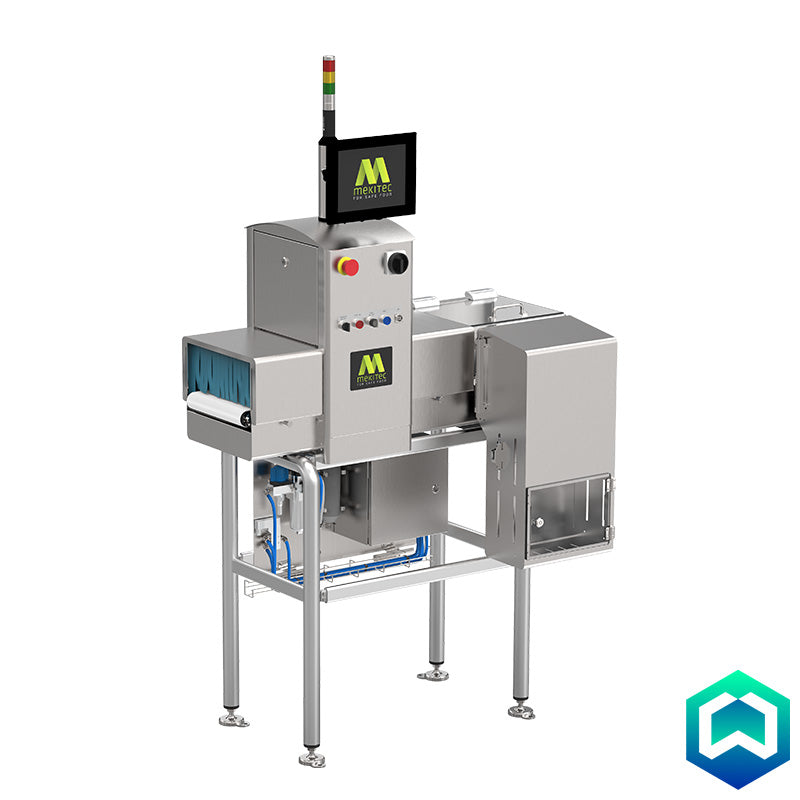

Mekitec Meki One X-Ray Inspection System

MekiTec Meki One X-Ray System

The MEKI™ ONE X-ray inspection system offers a compact and powerful solution for food producers and packers seeking to elevate product safety and quality. Small and compact, this system scrutinises individual food packages, identifying a broad spectrum of hazardous foreign bodies such as metals, glass, stones, and even dense plastics.

Product Details

MEKI™ ONE: Comprehensive X-ray Inspection for Enhanced Food Safety and Quality

Beyond foreign object detection, the MEKI™ ONE pinpoints quality defects like missing pieces or broken products, ensuring only the highest standards are met. Powered by AI, the system offers intelligent analysis and enhanced detection capabilities. The MEKI™ ONE also provides robust audit trails for compliance and quality control.

Preventing Recalls and Ensuring Consumer Trust

Implementing the MEKI™ ONE significantly reduces the risk of costly product recalls and minimises customer complaints. By proactively identifying and removing defective products, it safeguards brand reputation and builds consumer trust. Furthermore, this in-line inspection system is instrumental in fulfilling the rigorous requirements of product safety and HACCP/HARCP plans. It also plays a crucial role in achieving and maintaining third-party food safety certifications, including BRC, SQF, and IFS, which are often essential for market access.

Superior Technology in a Compact Design

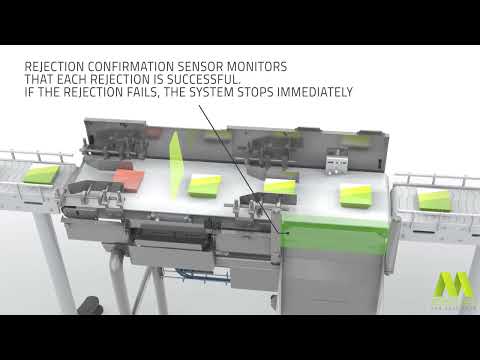

Despite its compact size, the MEKI™ ONE boasts superior X-ray sensitivity and incorporates multiple sensors to monitor both system safety and operational functionality. A key feature is the rejection confirmation system, which ensures that any identified non-conforming product is effectively removed from the production line. This critical control point guarantees that only safe and high-quality items proceed to the consumer. Enjoy peace of mind with a 2-year warranty on the system.

Pack-for-Pack Traceability and Global Standards Compliance

Specifically designed for the inspection of primary packaged food products, the MEKI™ ONE delivers exceptional detection performance and provides crucial pack-for-pack traceability. In today's food industry, traceability is paramount for rapid response in the event of a potential issue. Equipping individual packaging lines with the MEKI™ ONE ensures that food manufacturers and co-packers benefit from a best-value solution that addresses both safety and quality concerns. This system simplifies the implementation of advanced inspection practices, enabling businesses to not only meet but exceed global quality standards as they grow and expand. Benefit from long-term reliability with a generator warranty of 15,000 hours.

Certifications

Specifications

Detection area (W x H): 240mm x 110m

Conveyor speed: min. 0.1 m/s max. 1.3 m/s

Conveyor load capacity: max. 3kg

X-ray power: 30-60kV, 0.2-2.5mA, max 100W

X-ray leakage: less than 1 µSv/h

Detector: Linear scanner, resolution 0.4 mm

Software: Mekitec X-Ray Inspection System SW

Operating system: Windows 10

Connectivity: USB, Ethernet

HMI: 12” Color TFT LCD Screen

Operation Temperature: 0–35°C ambient

Cooling: Optional cooling system

IP rating: IP54

Relative humidity: 30-85 %, non-condensing

System power supply: 110-230 VAC, 50/60 Hz

Dimensions (W x D x H): 1200/1280 mm x 715 mm x 2000 mm

Weight: 155 kg

Material: Stainless steel, brushed

Reject: Integrated air reject with bin and standard
reject confirmation

Options: One/two conveyor model, push-arm reject,
hand sensors* and full reject confirmation

System: conveyor EU and FDA food use approved conveyor belt

Radiation protection: EN 61010-02-091, FDA CFR 21 part 1020.40

Safety switches: Safety circuit CAT 3, Performance Level PL d
