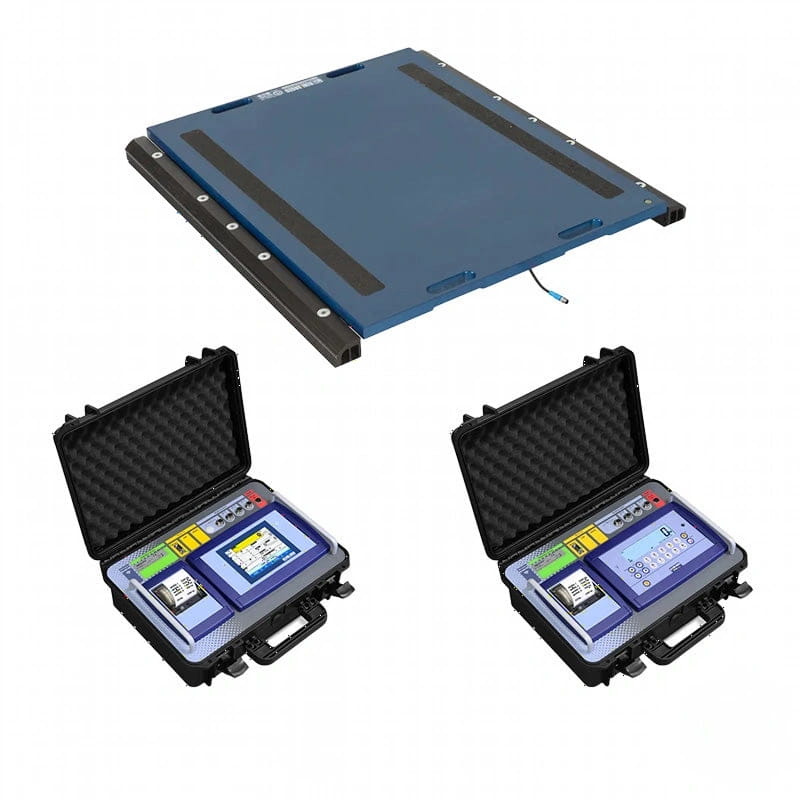

WWSF Vehicle and Axle Weighing System (750mm x 515mm)

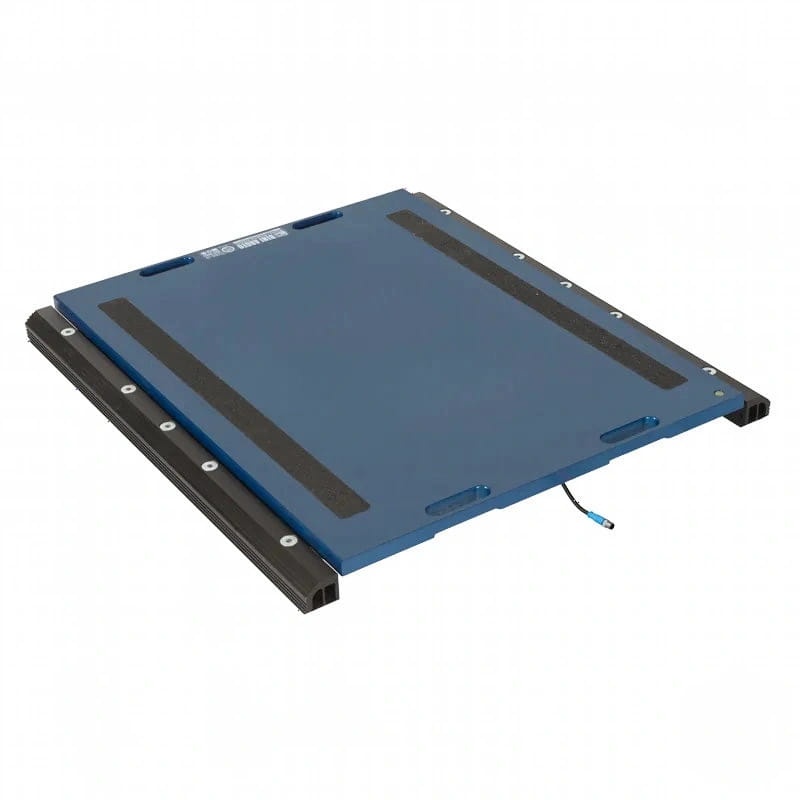

WWSF Weighing Platform

General Features:

• Wheels and handles for easy transport
• Non-slip rubber surface
• IP68 waterproof load cells and junction box
• Available in legal for trade and high resolution versions

Standard Weight Indicator

General Features

Robust design: Waterproof keyboard, metallic case, and rechargeable battery. High precision: Up to 10,000e accuracy, 3,000,000 internal resolution.
Versatile: Connects up to 8 load cells, handles multiple platforms and axles.
User-friendly: Configurable settings, clear display, and intuitive keyboard.
Portable: Compact size, lightweight, and includes a carrying case. Weighing Functions
Comprehensive: Weighs individual wheels, axles, and total vehicle weight.
Efficient: Calculates and prints barycenter (center of gravity).
Flexible: Handles various weighing scenarios (simple, totalization, input/output).
Accurate: Provides static axle totalization for precise measurements.
Printing: Built-in thermal printer for detailed weight records.

Main Certifications

• EC Type Approval (EN45501)
• OIML R76

Dynamic Touch Screen Weight Indicator

General Features

Touchscreen Display: Intuitive navigation and customisation for user-friendly operation.
Multilingual Support: Accommodates diverse user bases.
Customisable Screens: Tailored interfaces for specific weighing needs.
High Accuracy: Precise weight measurements with advanced A/D converter.
Data Management: Built-in memory, alibi memory, and SD card slot for data storage and retrieval.
Connectivity: Multiple serial ports for integration with printers, computers, and other devices.
Battery Powered: Portable operation for on-site applications.
Customisable Applications: Flexibility to adapt to specific weighing requirements.
Printing: Built-in thermal printer for detailed weight records.

Main Certifications

• EC Type Approval (EN45501)
• OIML R76
• OIML R51 - MID
• OIML R134 (AF09)

Comparison

Notes About The Legal For Trade Approved Versions

• The platforms are for legal for trade use:
  • In the single-platform systems, not used to weigh vehicles.
  • In the wheel weighing systems in which the number of platforms is equal to the number of vehicle wheels.
  • In the axle weighing systems composed of one or more multiples of WWS platforms, except possible limitations of use for some European States.
• The axle weighing systems with 2 WWS platforms and a 3590E "AF09" weight indicator are OIML R134 certified for the dynamic vehicle weighing, according to the legal standards in force in the Country of use.
• The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade platform of the system.
• Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
  Example for a 4 pads system
  Single CE-M Platform: Max=1500kg and e=0,5kg
  CE-M SUM: Max=6000kg and e=2kg
