LMRE and LMRD Levelling Module Ramp

By Dini Argeo

The Dini Argeo LMRE and LMRD iron ramps are essential components for creating accurate and efficient axle weighing stations. Designed to complement the Dini Argeo LME and LMD levelling modules, these ramps facilitate smooth and safe vehicle boarding and disembarking.

Product Information

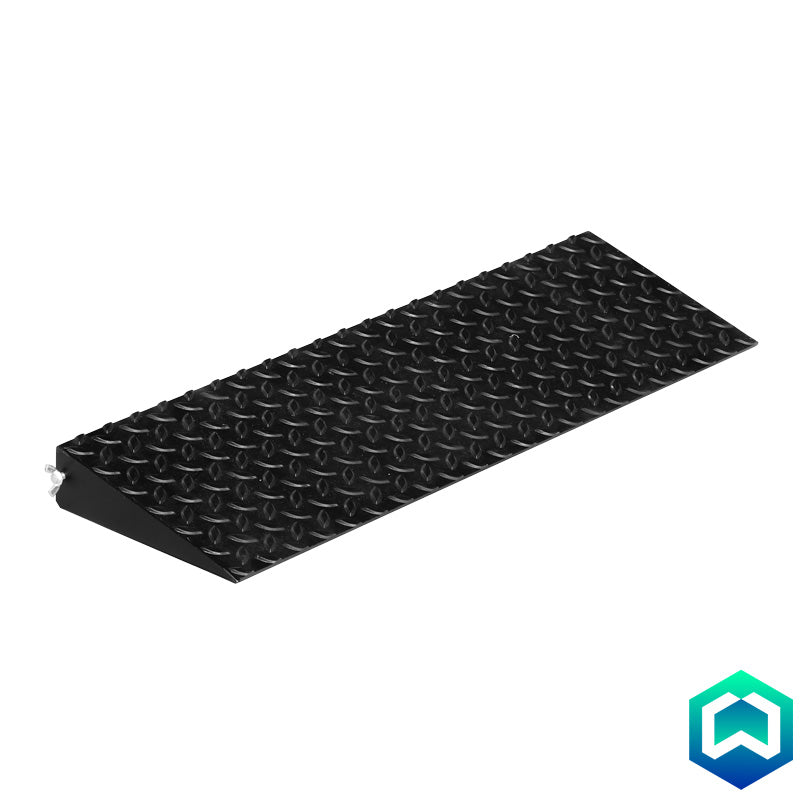

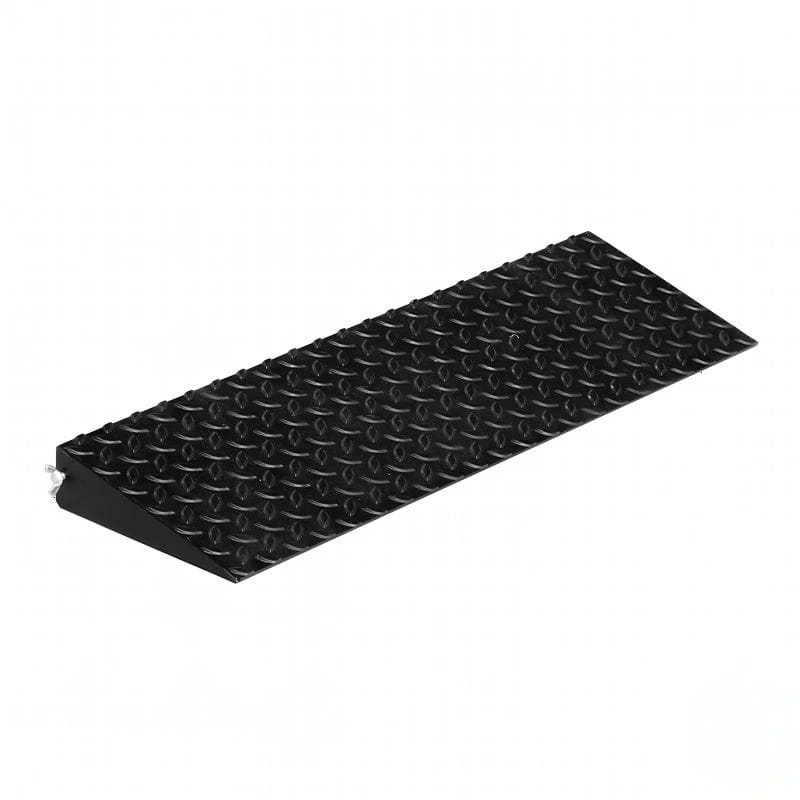

LMRE and LMRD Iron Ramp

Key Features:

  • Specifically designed for use with Dini Argeo LME and LMD levelling modules.
  • Built with high-quality iron for exceptional strength and longevity.
  • Anti-slip surface and secure design.
  • Lightweight and manageable for convenient installation and removal.

Combine with the Dini Argeo levelling modules to create a complete levelling kit.
Specification
  • Maximum load capacity of the single module: up to 20t (per axle up to max. 40t).
  • Ramp dimensions:
    For WWSE: 201 X 54 X 700 mm (LxHxW)
    For WWSD: 201 X 54 X 900 mm (LxHxW)
Downloads

Please click here for the LMRE technical drawing

Please click here for the LMRD technical drawing
Model
£132.00
